The Homeowner’s Guide to CIPP Lining in the Phoenix Valley
When an underground sewer or drain pipe is cracked, corroded, or leaking, digging up your yard used to be the only solution. Cured-in-Place Pipe (CIPP) lining is a modern trenchless repair that creates a new pipe inside the old one. A flexible fabric liner saturated with special resin is pulled or pushed into the damaged sewer line, then inflated and cured (hardened) in place. The result is a seamless, joint-free “pipe within a pipe” that restores strength and flow without major excavation.

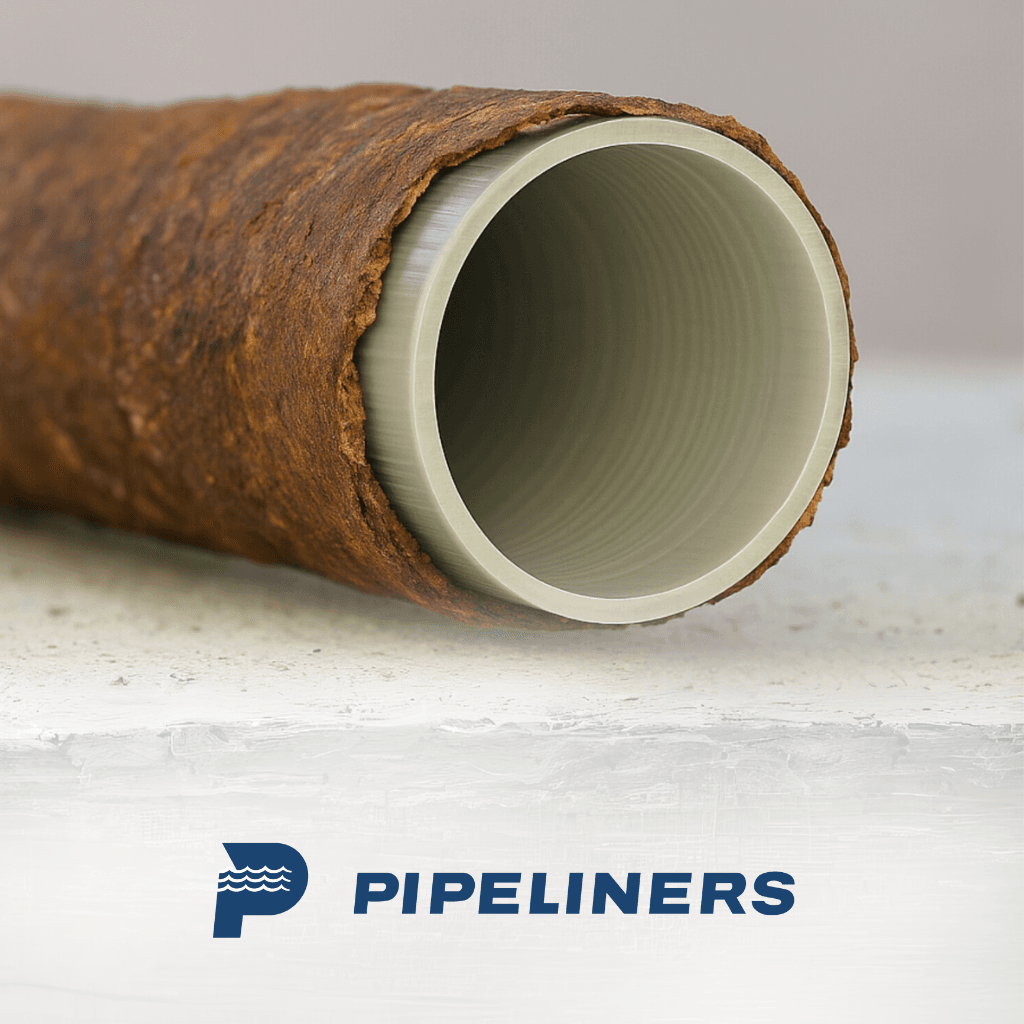

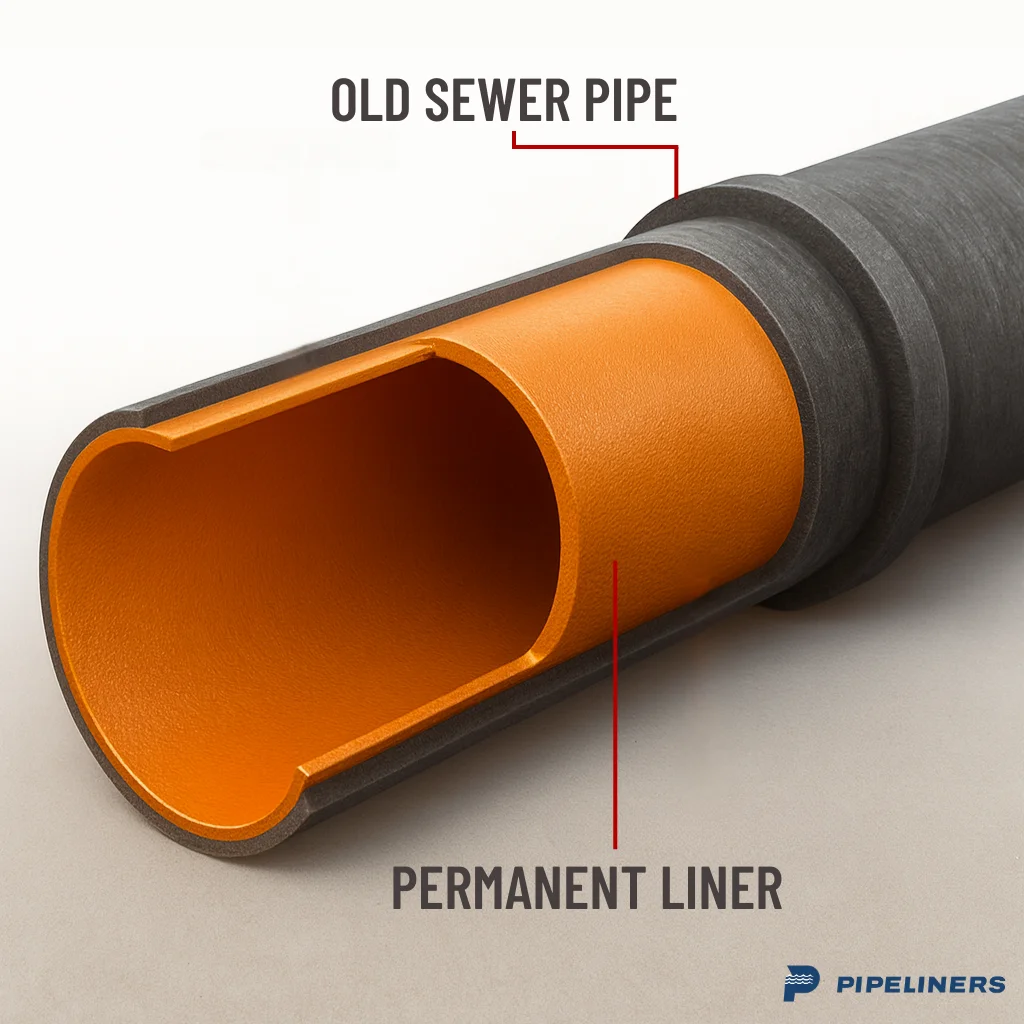

CIPP was developed to “restore and strengthen existing pipelines without the necessity for extensive trench digging”. In practice, a plumbing crew cleans your old pipe, inserts the resin-coated liner, then uses heat or UV light to harden it. Once cured, the liner forms a rigid inner tube that extends the life of the pipe by decades. In short, CIPP lets us “create a new, robust pipe within the original one”– often with just one or two small access points in your yard.
Why Phoenix-Area Homes Need CIPP

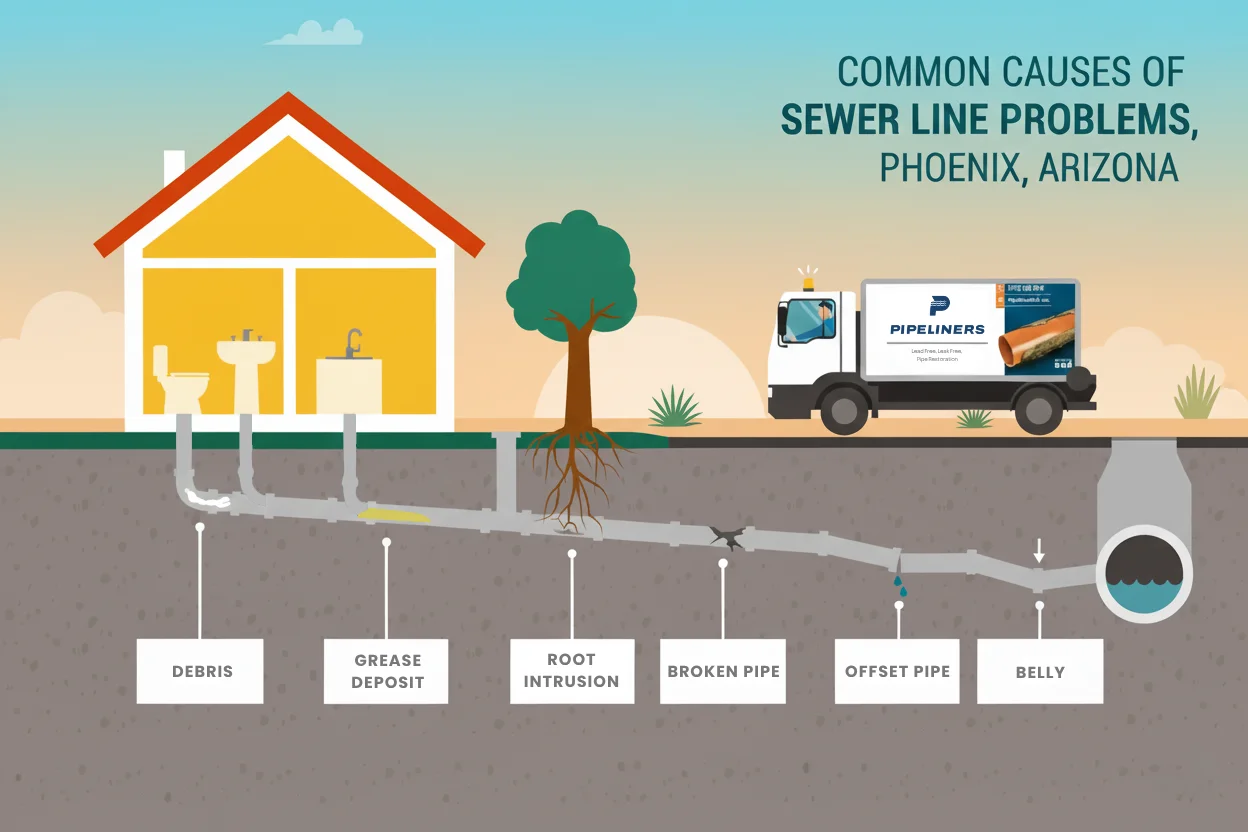

Arizona’s climate and landscape create unique sewer problems. For example, hard, mineral-rich water in the Valley leaves scale and sediment inside pipes. Over years, this mineral build-up clogs drains and even corrodes pipe walls. Many older Phoenix homes were built with clay, cast-iron, or galvanized drains that rust and crack faster than modern PVC lines. When municipal sewer gas (which contains hydrogen sulfide) seeps in, it can eat away at metal or concrete pipes, causing leaks.
Tree roots are another local issue. Even in our desert yards, shade trees search for water. Any tiny crack or joint in an old pipe will attract roots over time. These roots grow inside pipes, causing blockages and cracks. In addition, Phoenix’s dry soil and occasional heavy monsoon rains can make underground lines sag or shift. After downpours, eroded soil under a pipe may leave it unsupported (“bellying”), leading to misaligned joints or cracks. Likewise, the clay-laden soils around Phoenix expand and contract with moisture, stressing pipes buried in the yard.
The upshot: in the Phoenix and East Valley area, homeowners often deal with aging pipes, mineral corrosion, tree-root intrusion, and ground shifting – all of which lead to sewer leaks or backups. CIPP lining directly addresses these problems by sealing cracks and corrosion inside the pipe, without disturbing your yard.
Benefits of CIPP Lining for Homeowners
CIPP lining offers several advantages over traditional “dig-and-replace” sewer repair. For Phoenix-area homeowners, the biggest benefits include:
- Minimal digging & disruption – Unlike open trenching, trenchless lining usually requires only a few small access holes (often at existing cleanouts). Yards, driveways and landscaping stay largely untouched. In fact, plumbers often brag that CIPP means “no need to remove old sewer lines” or tear up pavement. Your lawn, flower beds and pavers remain intact as workers operate underground.
- Cost-effective – Because there’s little to no digging, labor and restoration costs are lower. CIPP repairs the existing pipe so you avoid the high price of full excavation and repaving. Many Phoenix contractors note that CIPP offers an economical alternative to replacement, saving time and money.
- Quick installation – Most residential CIPP jobs take just one day (or a couple of days for very long runs). After inspection and cleaning, inserting and curing the liner is relatively fast, so your sewer is back online sooner. (Homeowners often compare it to having new carpet installed under the floor, but underground.)
- Long-lasting & seamless – The new CIPP liner is typically made of epoxy resin that hardens into a durable plastic. Trenchless liners are rated for 50+ years of life. Unlike pieced-together patches, a CIPP liner is one continuous tube with no seams or joints, eliminating weak spots and future leaks.
- Preserves landscaping & infrastructure – No uprooted shrubs or dug-up driveways! CIPP is eco-friendly because it avoids heavy machinery and saves materials. Gardens, patios, sidewalks and underground utilities stay protected. Homeowners can rest easy knowing their pool deck, lawn and irrigation aren’t being trenched out to fix a sewer line.In summary, CIPP lining is fast, hassle-free pipe repair that saves homeowners money and time. It keeps yards beautiful and fixes the root causes (pun intended) of sewer line problems common in the Phoenix area.
In summary, CIPP lining is fast, hassle-free pipe repair that saves homeowners money and time. It keeps yards beautiful and fixes the root causes (pun intended) of sewer line problems common in the Phoenix area.
The CIPP Installation Process
When you hire a contractor to reline your pipe, you can expect the following steps:
- Camera Inspection: First, a plumber snakes a waterproof video camera down the sewer line to locate the cracks, blockages, or leaks. This inspection verifies that the pipe can be lined and pinpoints trouble spots.
- Cleaning & Prep: The pipe is thoroughly cleaned, usually with a high-pressure water jetter. Roots, grease or debris are cut away so the liner will fit snugly. (If roots are extensive, some trenching may be needed to access and remove them.)
- Liner Preparation: A flexible fabric tube (saturated with resin on-site) is prepared. This resin liner is sized slightly larger than the existing pipe.
- Insertion: Through a small access hole or cleanout, the resin-soaked liner is pulled or inverted into the damaged pipe. Once in place, the liner is inflated like a balloon so it presses firmly against the old pipe walls.
- Curing: With the liner pressed tight, heat or UV light is applied. This “cures” (hardens) the resin into a solid tube. Depending on the material, curing might take anywhere from 30 minutes to a few hours. Some systems use hot water or steam, others use a special UV light trailer. The process fills cracks and molds precisely to the pipe’s interior.
- Final Inspection: After curing, the installer deflates and removes any air tubes. A final camera run confirms that the new liner is smooth and the pipe flow is clear. The small access holes are then patched up and the area is cleaned.
- With CIPP, most of the work happens inside the pipe, out of sight. Once finished, the sewer line essentially has a brand-new interior. For homeowners, this means only brief downtime (usually a day or two) and no gaping trench in the yard. During the process you may need to avoid water use for a short time, but you’ll soon have a like-new sewer line with minimal mess.
Local Arizona Considerations
Age and Materials: Many homes in Phoenix’s older neighborhoods (Mesa, Tempe, central Phoenix) still have clay, cast iron, or galvanized pipes underground. These materials tend to deteriorate faster under our conditions. CIPP is especially useful for these, because relining avoids removing decades-old landscaping to repipe.
Soil & Climate: The Valley’s soil includes clay and caliche which shrink and swell with rain. During monsoon season, flooding or erosion can undermine pipes. In fact, experts note that “sagging or bellied pipes” are common here due to soil erosion from heavy rains. CIPP seals those weakened areas from the inside, preventing further collapse.
Tree Roots: Desert trees like mesquite and palo verde still send roots deep for water. If a pipe has been infiltrated by roots (signaled by recurring clogs), CIPP will seal those cracks. After relining, it’s wise to trim or avoid tree roots in that line.
Longevity: Given the effort it takes to excavate in tough soil, installing a 50+ year liner now means you likely won’t worry about that sewer line again. Most liners used in Arizona carry long warranties.
Homeowner Checklist / FAQ
When should I consider CIPP lining?
If you have recurring sewer clogs, slow drains, or age-old plumbing (orangeburg, clay, cast-iron), it’s time for an inspection. Warning signs include sewage odors in yard, soggy spots, or gurgling drains.
How long does it last?
Lined correctly, CIPP can last 50 years or more. Many liner manufacturers guarantee their product for decades. In practice, most homeowners won’t need to reline or repair it again.
Is CIPP more expensive than digging?
Upfront, CIPP can be comparable or slightly less than a full dig-and-replace. But once you factor in restoring landscaping, concrete, and the hassle, trenchless is usually cheaper overall.
Will the pipe still be narrower?
Yes, the cured liner is slightly smaller in diameter than the original pipe. However, it smooths out intrusions and joints, which often improves flow. For most home pipes (4–6″ diameter), the loss of diameter is minimal and doesn’t impact performance.
Can CIPP handle a collapsed pipe?
If the pipe has only minor collapse (like a shallow cave-in), in many cases a specially folded liner can still pass through. However, fully collapsed or offset pipe sections may need partial excavation first.
Do plumbers need to dig holes?
Only small access holes (often where cleanouts already exist). As one Phoenix plumber puts it: “With this process, we only need to drill one hole in a defective sewer line”. Your yard and hardscapes remain largely untouched.
Do I need to shut off water?
Typically, you’ll be asked to limit water use only during the curing step (which is a few hours). Your plumber will advise you when to avoid sinks/showers.
How do I choose a contractor?
Look for a licensed plumber with trenchless experience and good local reviews. They should provide a camera inspection report and explain warranty terms. Since Phoenix conditions are unique, a local specialist (familiar with monsoon effects and hard water) is best.
CIPP lining has revolutionized pipe repairs in Phoenix and across the country. By avoiding trenches, it protects your home’s value and gets the job done efficiently. For Valley homeowners dealing with age, roots, or corrosion, trenchless lining is a smart, long-term solution that saves time, money, and a lot of yard work.
